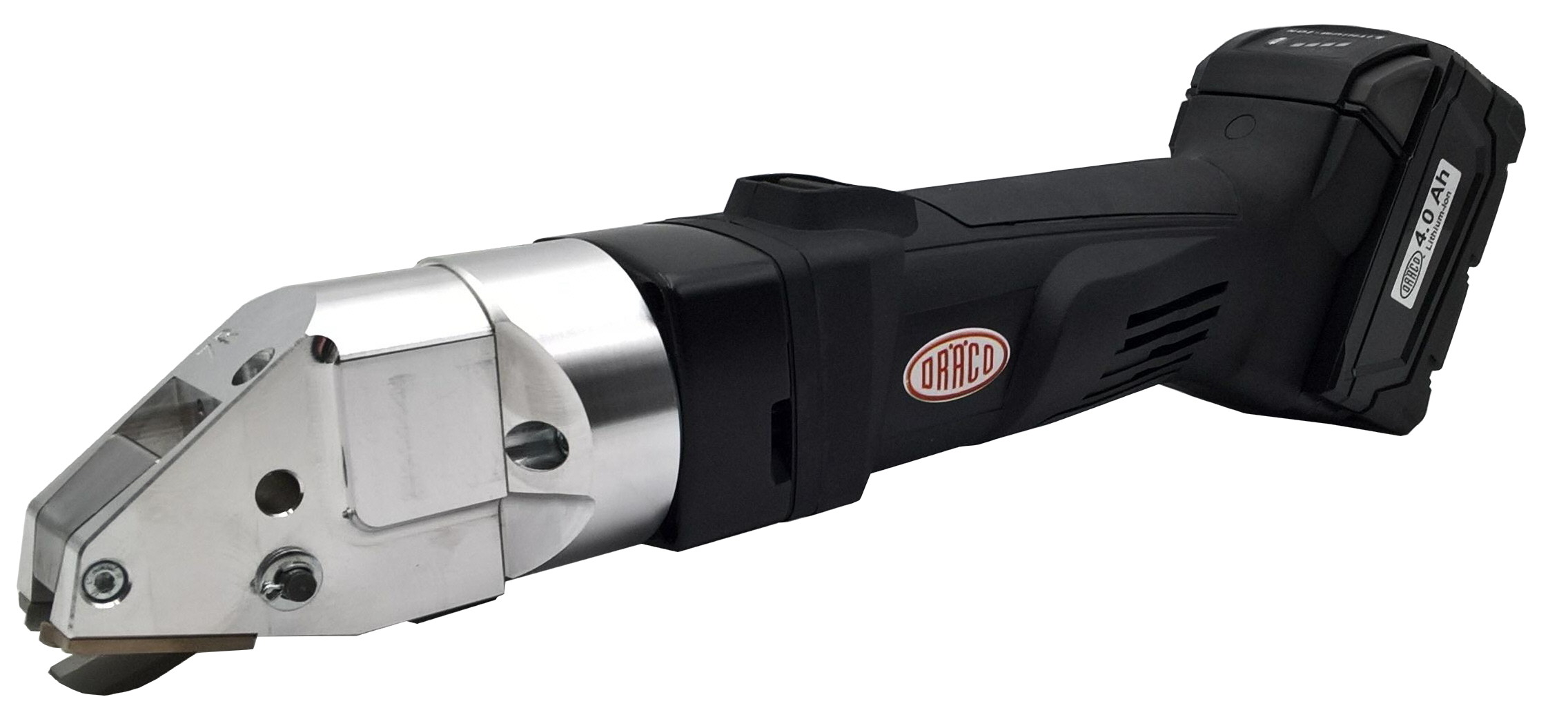

Cordless Radius Seam Metal Shear AK 3514-7R Li-Ion

up to 2.0 mm, or 4x0.75 mm steel

Cold cutting without flying sparks! Ideal for cutting recesses in spiral ducts and sheets of all kinds. Cuts straight and tight radii in sheets and even over seams.

Ideal for air and climate technology, installation companies, truck workshops, metalworking companies etc.

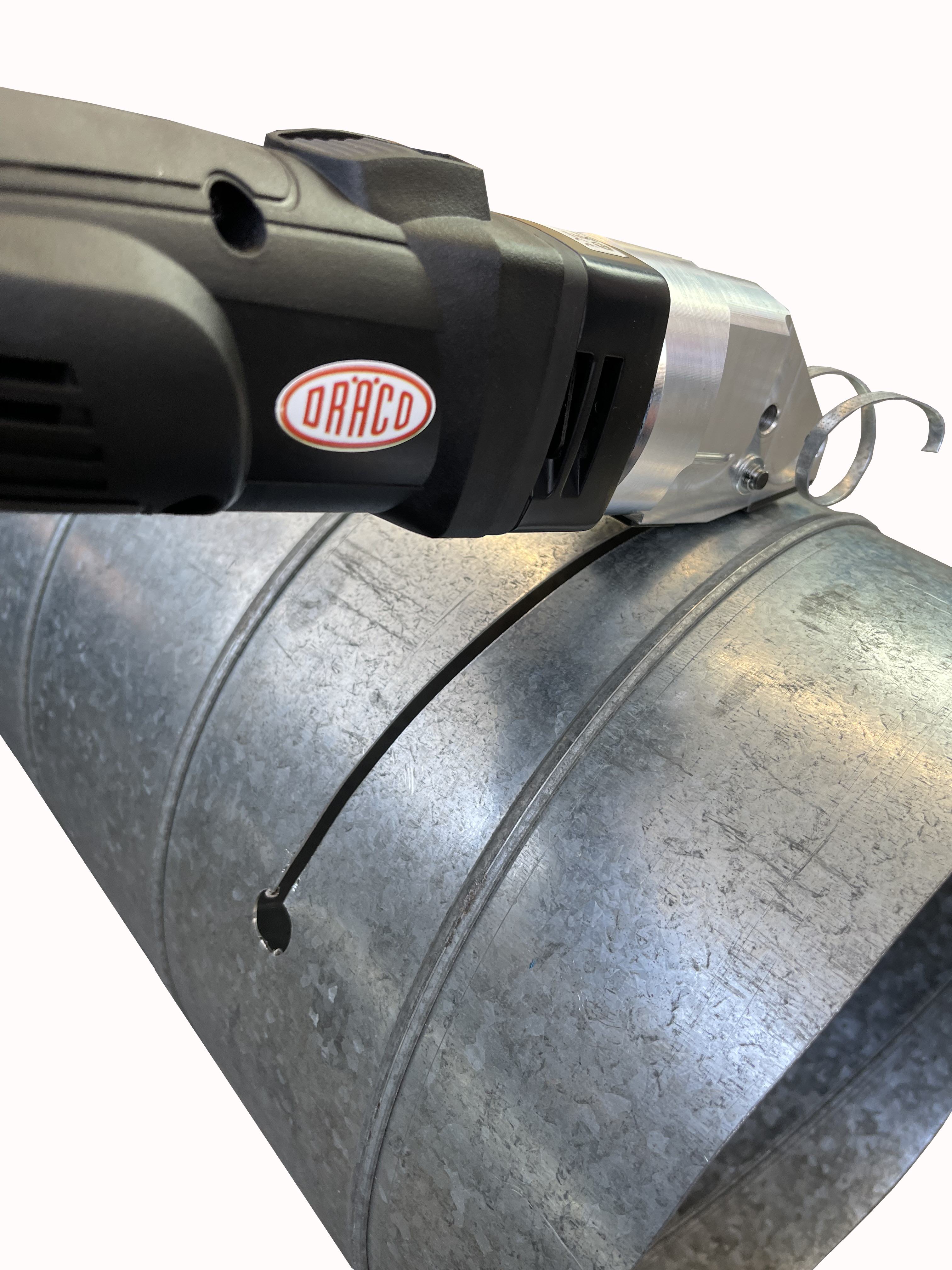

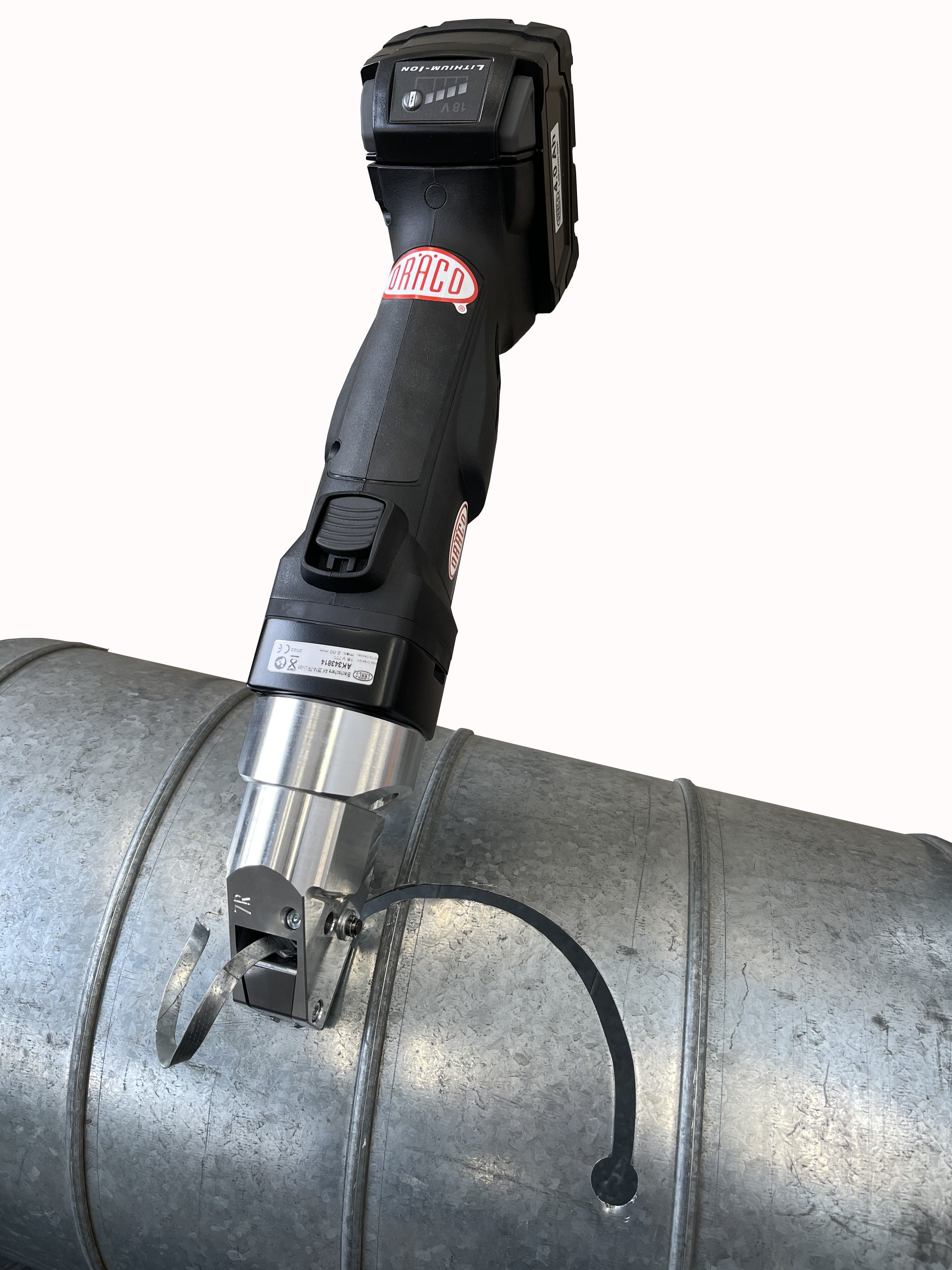

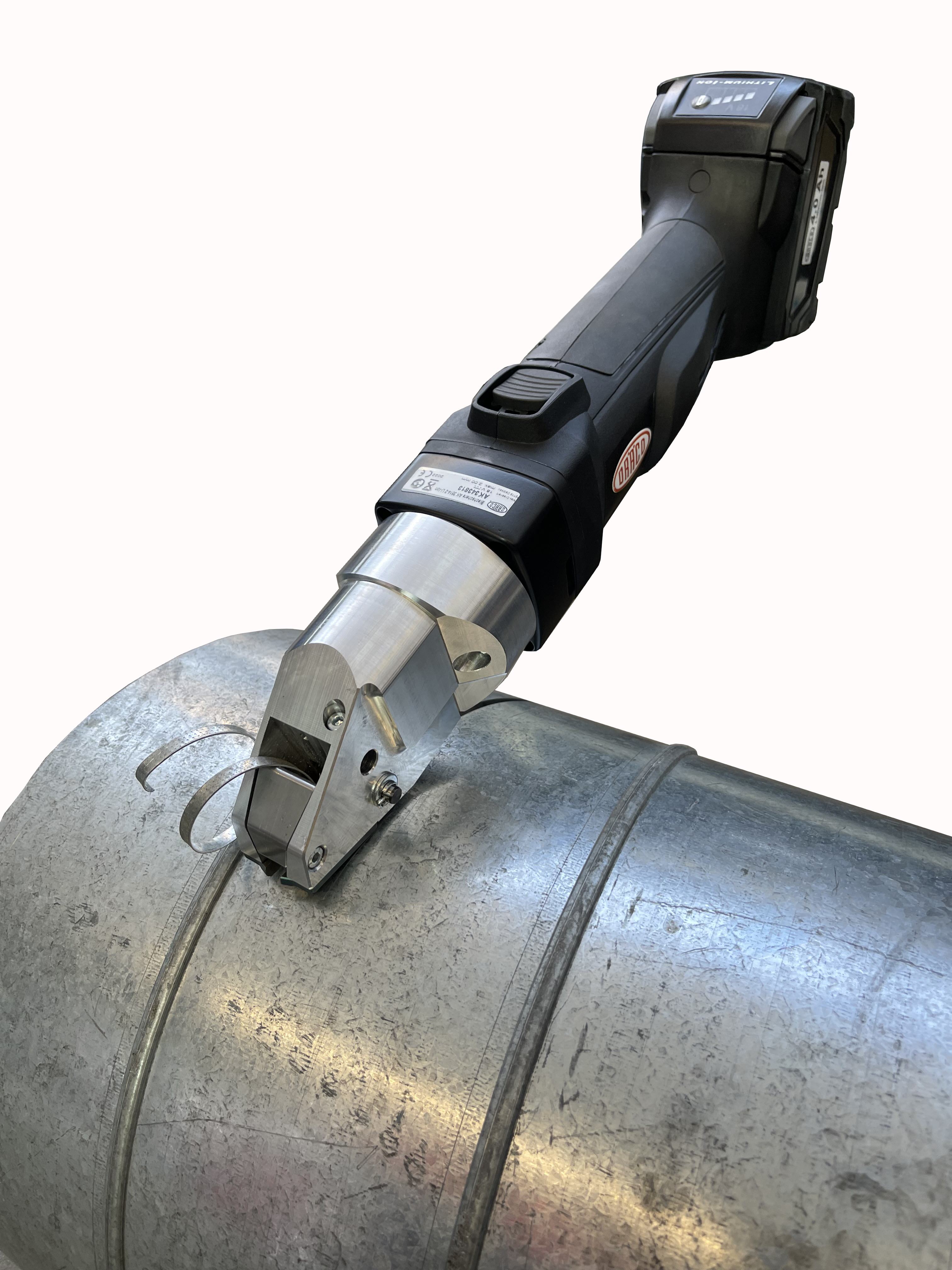

Round holes in (spiro) tubes, connections in (spiro) tubes, splitting of(spiro) tubes, aluminum tear sheet processing.

5-pcs. craftsmen-set consisting of shear AK 3514-7R Li-Ion with a 30 min. charger CLi, 2 batteries (2.0+4.0 Ah) in a transport box.

In quotation cart

18 Volt Power

Unmatched Run-Time, Superior Durability

MD batteries last longer, think faster, and work harder than all other professional LITHIUM-ION batteries. Built to withstand the harshest environments, MD batteries deliver more work over the course of your day and over the life of the battery.

  • 4-pole motors, featuring rare-earth magnets, provide more power, more run-time, and longer life than any competitor motor. This provides smaller, lighter, and more capable tools that last longer on the jobsite.
  • the  batteries provide up to 40% more run-time, 20% more power and 50% more recharges than conventional lithium-Ion batteries. MD18 batteries deliver best in class performance in extreme job-site conditions, including temps as low as 0°F/-18°C. In regions where heat is also a critical factor, MD18  batteries operate 20% cooler than conventional lithium-ion batteries and offer fade free power with no memory effect.
  • Fully compatible with  M18™ cordless products currently available, the new MD18 battery packs provide an instant upgrade to the performance, run-time and durability of the M18™ tools you already own.
  • cutting up to 200 meters with one battery charge

Also available as:

  • 230 volt electrical version 3514-7R
  • Compressed Air Model Type 19 / 3514-7R
  • 12 volt battery version AK 3514-7R Ni-MH
Technical data
AK 3514-7R Li-Ion AK 3514-7R Li-Ion AK 3514-2 Li-Ion
Item. No. 630803 630706
steel; 400 N/mm²; mm 2.0 2.0
aluminium; 250 N/mm²; mm 3.0 3.0
stainless steel; 600 N/mm²; mm 1.5 1.5
stainless steel; 800 N/mm²; mm 1.3 1.3
lead; ± ; mm 4.0 4.0
tightest radius; ± ; mm 45 200
working speed;± ; m/min 5 5
strokes; ± ;min-1 1800 1800
weight mach.incl.batt.; ± ;kg 2.4 2.4
Seams;400 N/mm²;mm 4x0.75 4x0.90
Falze;250 N/mm²;mm 4x0.9 6x0.75
weight of cpl.set; ± ;kg 5.4 5.4
Wear & tear parts AK 3514-7R Li-Ion

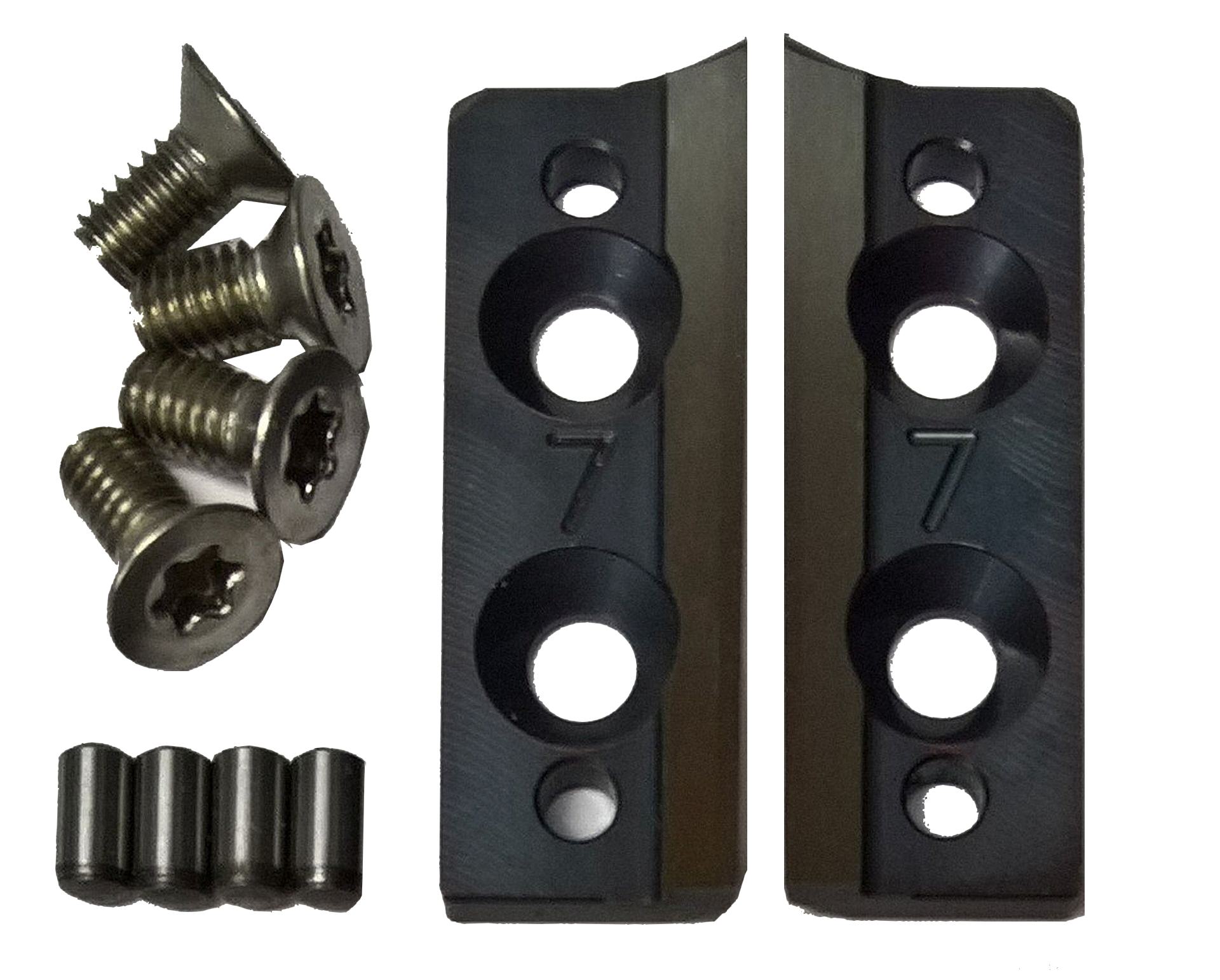

set of jaws BG37222 Quotation

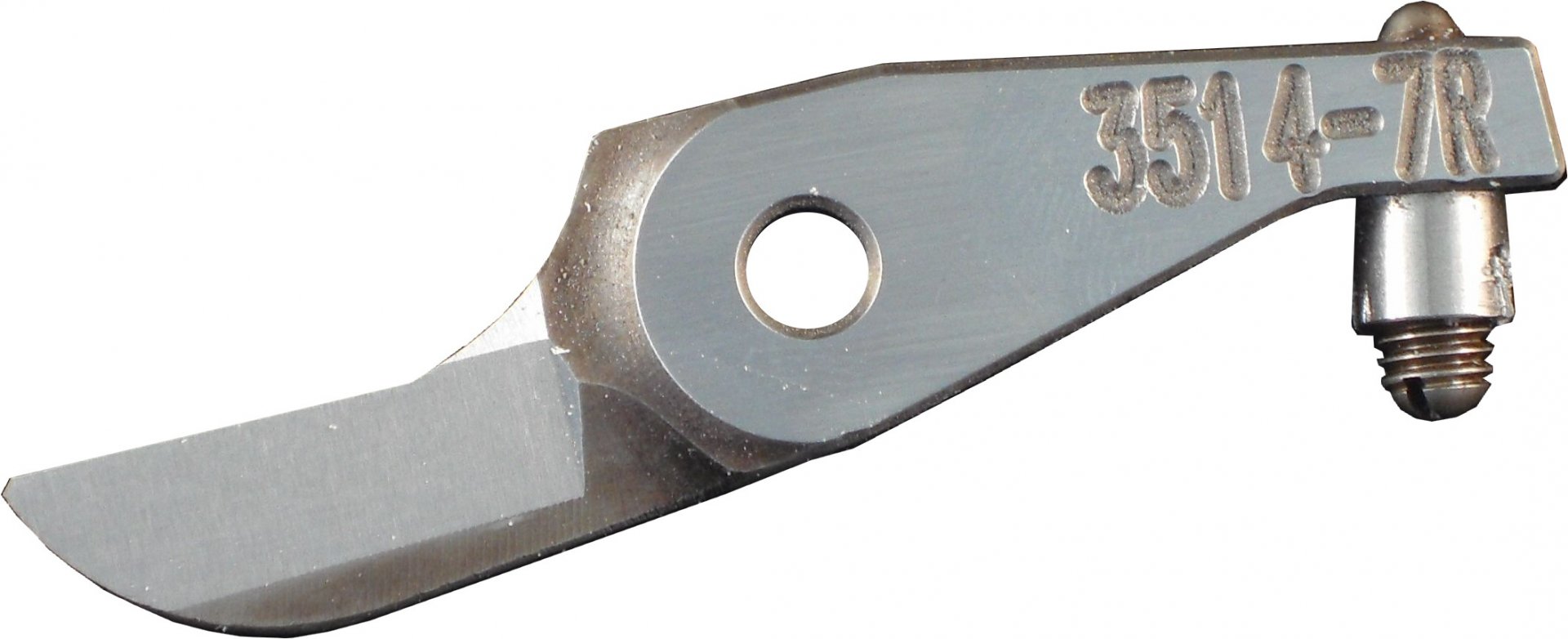

knife 371401 Quotation
set of jaws BG35055 Quotation
Optional accessories AK 3514-7R Li-Ion
Battery Li18/2 341820 Quotation

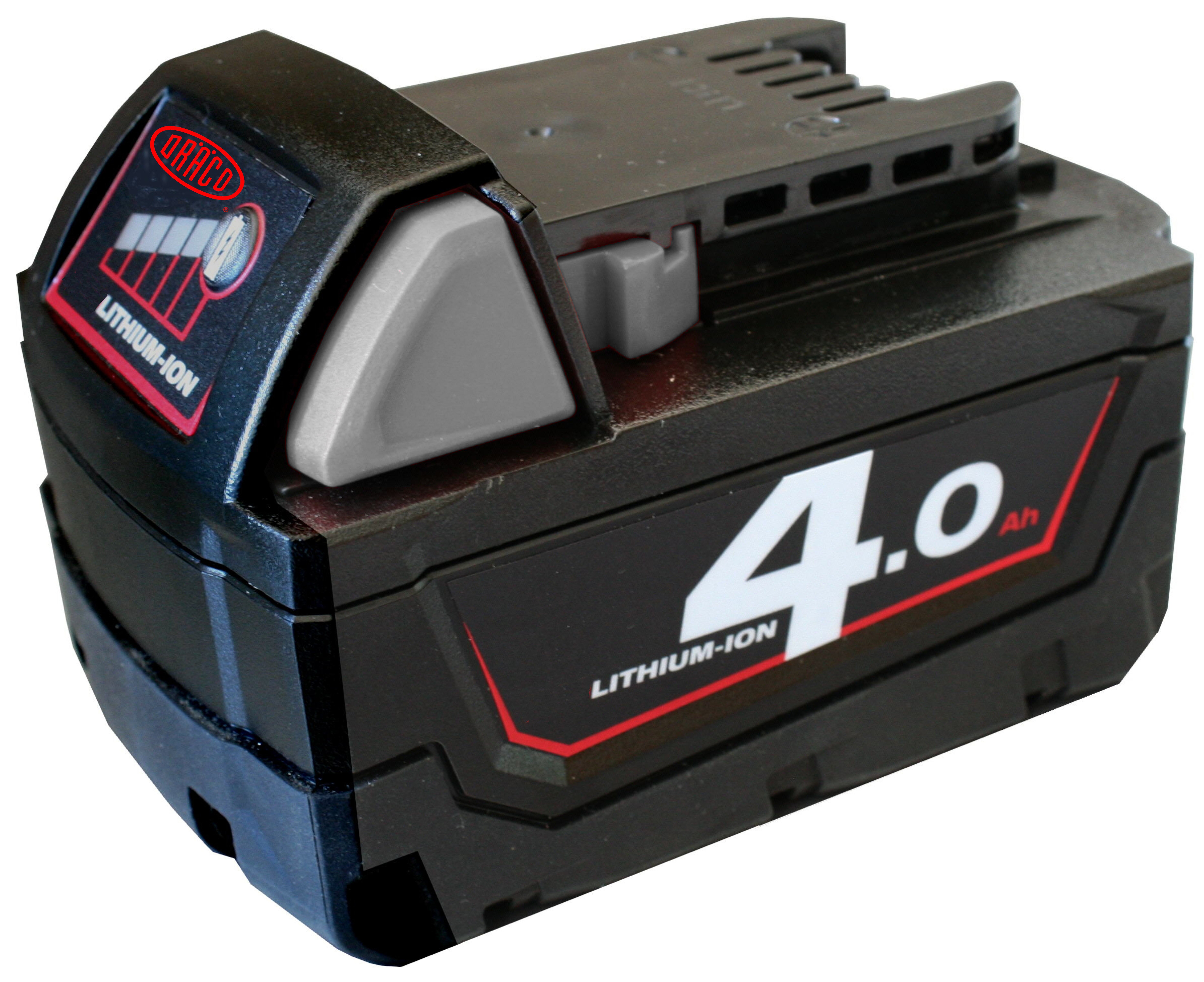

Battery Li18/4 341840 Quotation

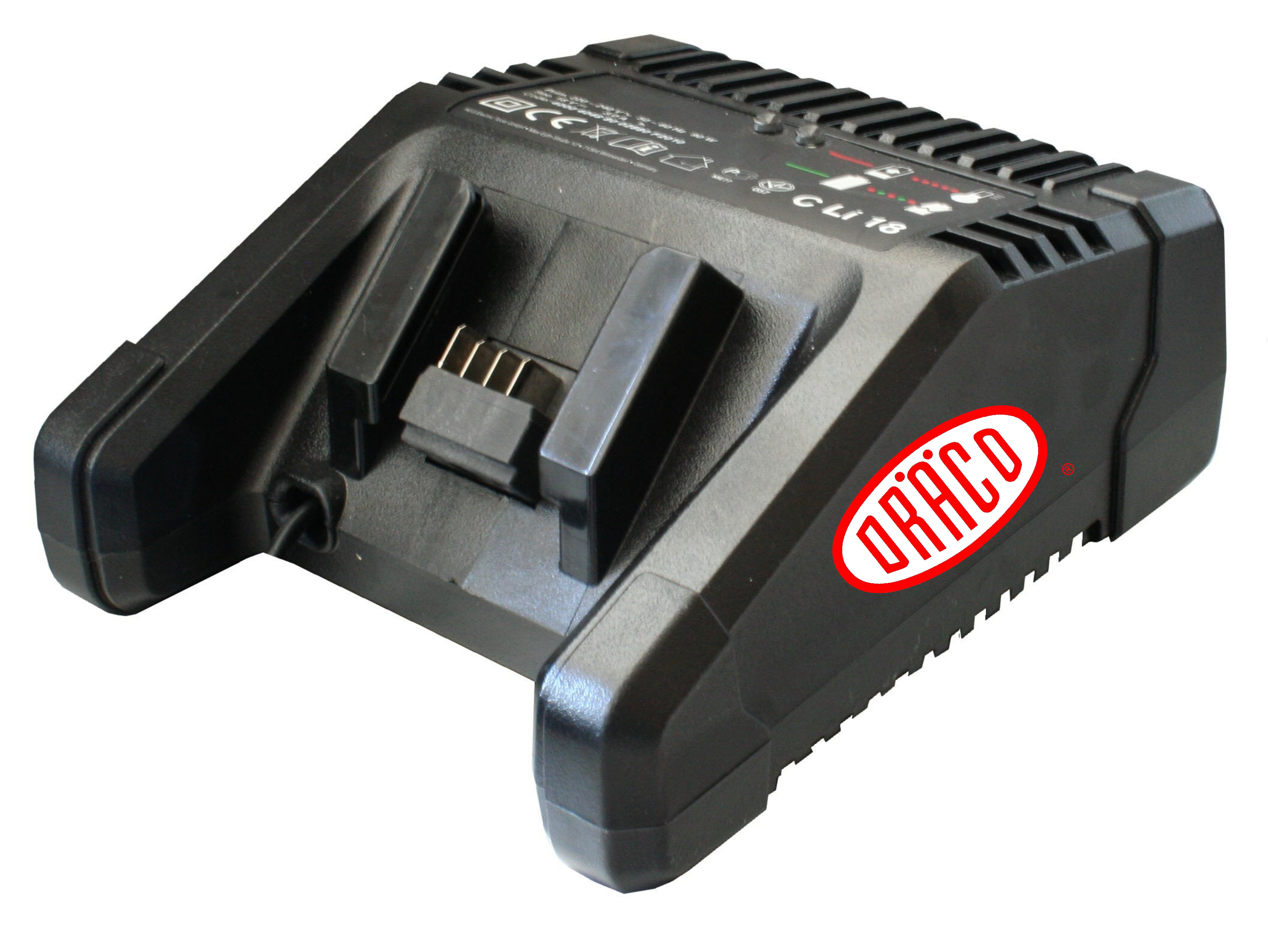

Charger CLi EU 341810 Quotation
Charger CLi USA 341811 Quotation
Charger CLi AUS 341812 Quotation
Additional equipment AK 3514-7R Li-Ion

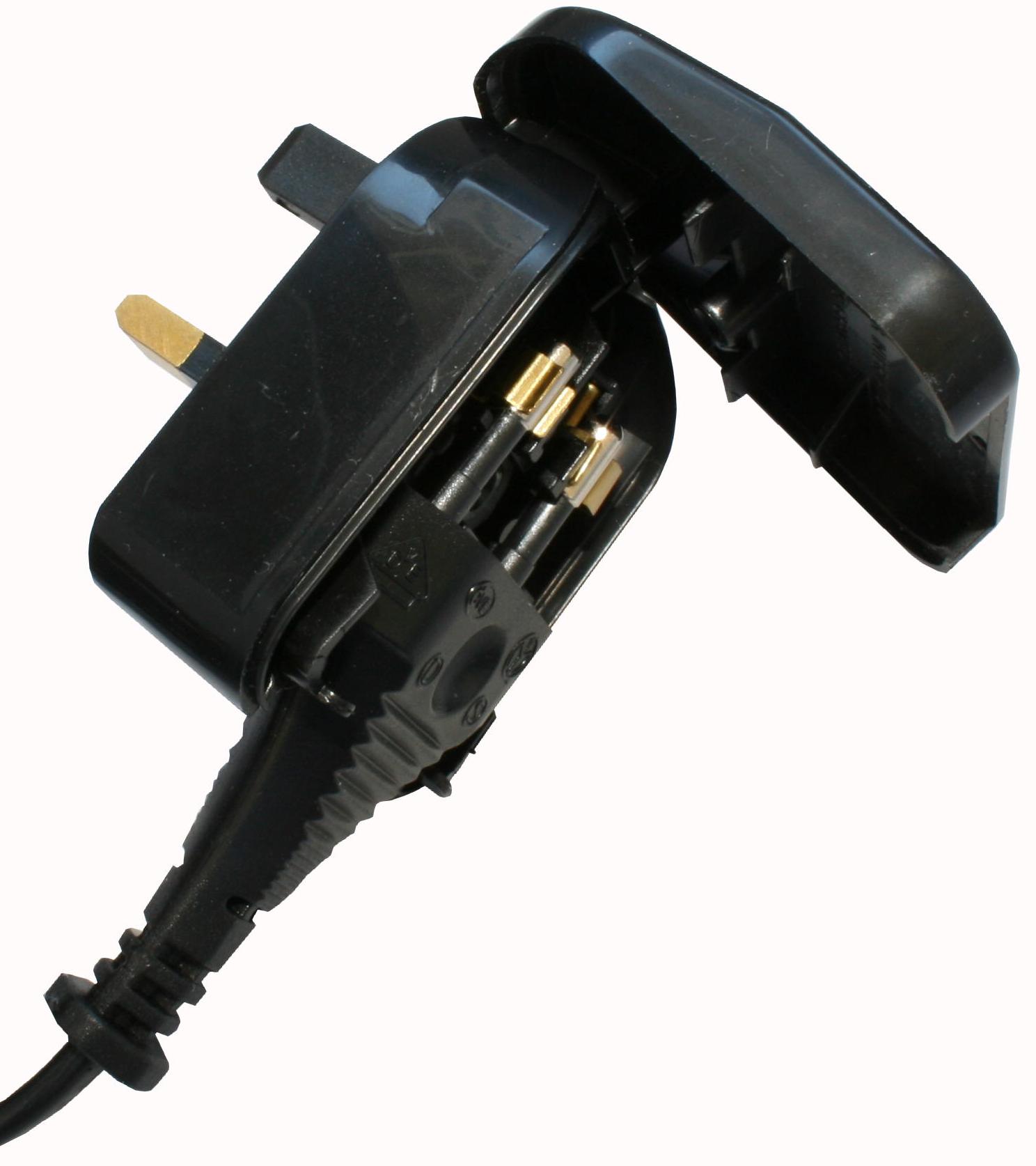

UK-Adapter-Plug 341819 Quotation
