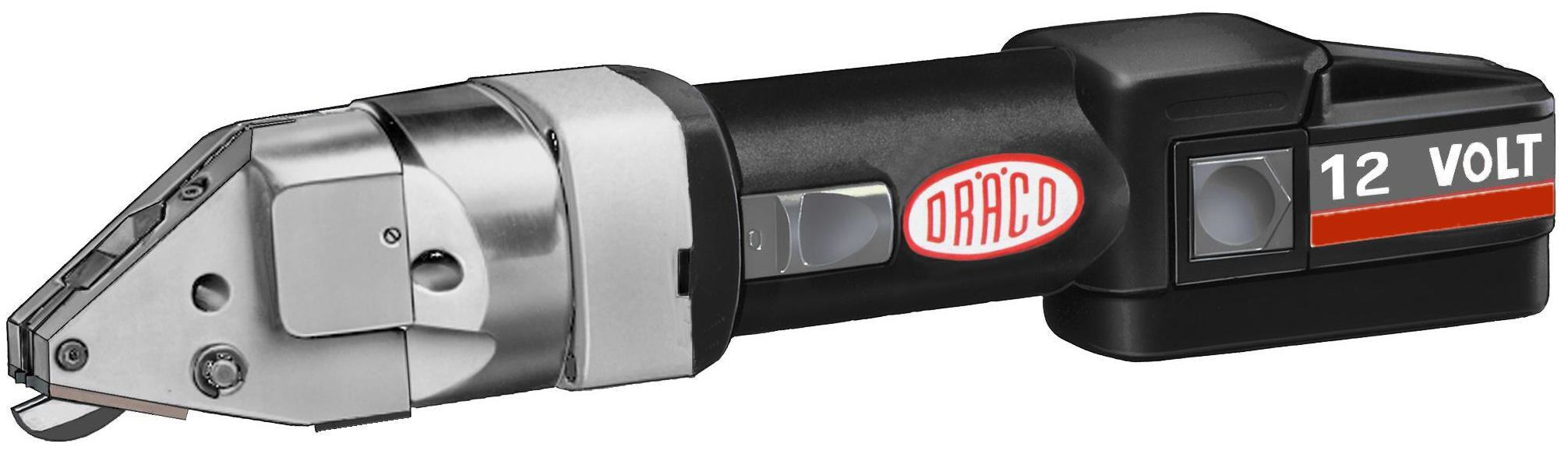

Cordless Metal Shear AK 3016 Ni-MH
Universal powerful shears for sheet metal up to 1.6 mm and therefore particularly suitable for installation companies, assembly and craft. Ideal also in the reduction for cutting metal stud profiles.
Knives and side knives can be reground.
These robust shears are used both in assembly and in mass production by means of linear guide systems can be used.
Optional accessories are line cutters for cutting parallel strips up to 100, 250 or 500 mm.
The 12 Volt cordless metal shear 5-pcs.craftsmen set consists of: 1 cordless shear AK 3016 Ni-MH, 2 batteries MXL12, 1 quick charger RC and 1 transport box.
In quotation cart
Characteristics
The cordless system 3000:
- ergonomic designed motor
- Power Plus motor: 30% more power
- 3.0 Ah 36,0 Wh highest quality, long life battery packs
- cutting up to 120 meters with one battery charge
- universal rapid charger RC
- charger is suitable for charging all systems 3000 battery packs
- computer controlled pulse charging technology charges batteries quickly and gently, leading to a threefold increase in life of battery packs
- fail-safe polarity protection
- fully automatic functions: continuous temperature monitoring and switching from quick charge to trickle charge make overcharging impossible!
- LED control panel reports charging status or malfunction
- in conjunction with battery charger RC, batteries can be charged 3000 times or more
- ideal for site work
- burr-free cutting
- shear blade head with regrind able and exchangeable blades
Technical data
| AK 3016 Ni-MH | AK 3016 Ni-MH | AK 3010 Ni-MH | AK 3013 Ni-MH | ||
| Item. No. | 30163 | 30103 | 30133 | ||
| steel; 400 N/mm²; mm | 1.6 | 1.0 | 1.3 | ||
| stainless steel; 600 N/mm²; mm | 1.3 | 0.7 | 1.0 | ||
| stainless steel; 800 N/mm²; mm | 1.0 | 0.4 | 0.7 | ||
| aluminium; 250 N/mm²; mm | 2.5 | 1.5 | 2.0 | ||
| lead; ± ; mm | 3.0 | ||||
| tightest radius; ± ; mm | 140 | 50 | 100 | ||
| working speed;± ; m/min | 3.5 | 3.5 | 3.5 | ||
| strokes; ± ;min-1 | 1800 | 1800 | 1800 | ||
| weight mach.incl.batt.; ± ;kg | 2.0 | 2.0 | 2.0 | ||
| weight of cpl.set; ± ;kg | 5.4 | 5.4 | 5.4 | ||
| Wear & tear parts | AK 3016 Ni-MH | |||
| knife-pin set | BG12555 | Quotation | ||
| knife for 1016-1 & 1013 | 01013 | Quotation | ||
| Set of jaws for 1016-1 % 1013 | BG13074 | Quotation | ||
| Optional accessories | AK 3016 Ni-MH | |||

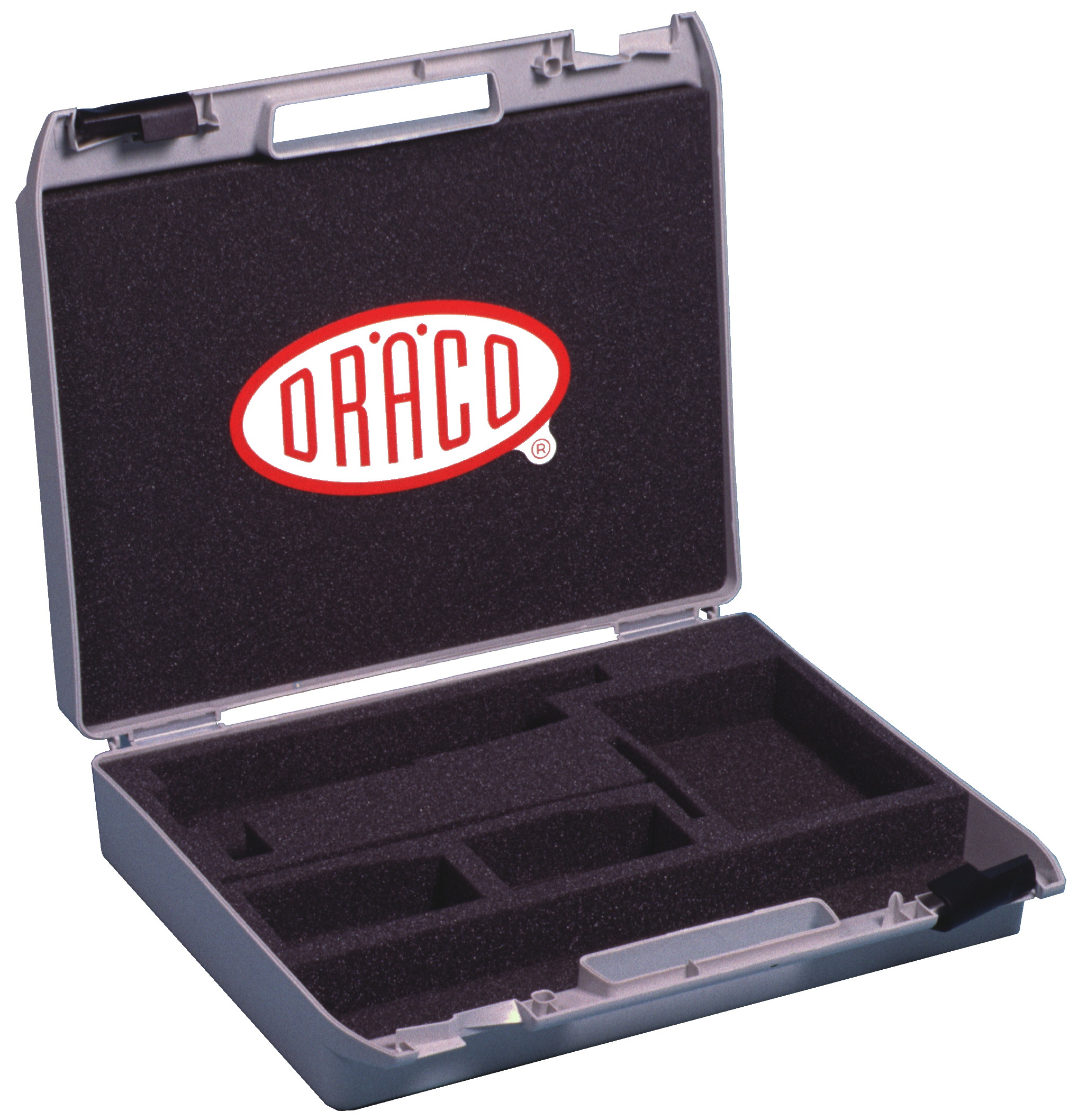

| transport-box | 42861 | Quotation | ||

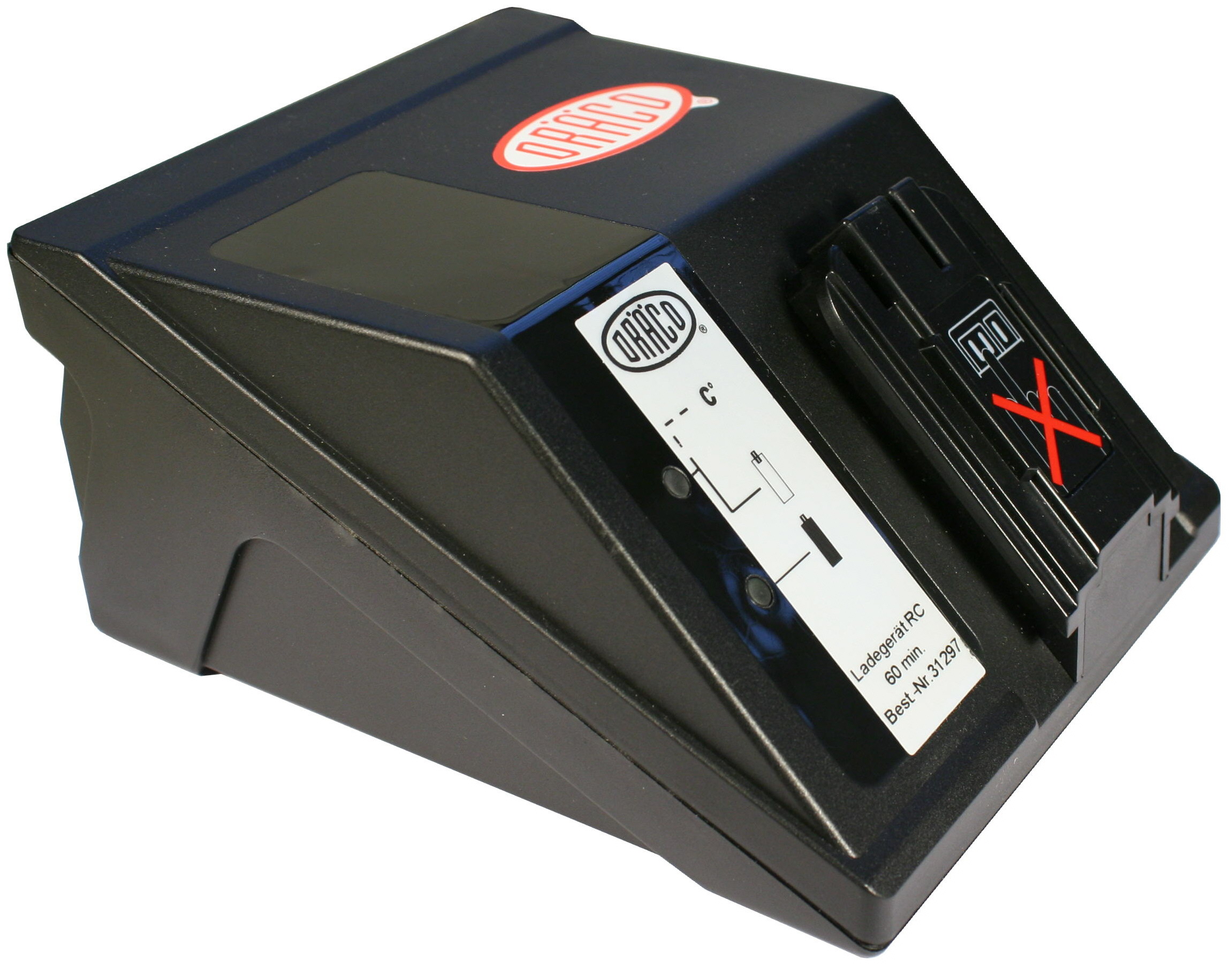

| Charger RC (60 min.) 12V/230V | 3129 | Quotation | ||
| Battery MXL 12 | 31298S3 | Quotation | ||
| Charger SRU for USA/CDN 12V/115V | 31301 | Quotation | ||
| Additional equipment | AK 3016 Ni-MH | |||
| adjustable guide S/01 up to 100 mm | 10059 | Quotation | ||
| adjustable guide S/01 up to 250 mm | 10060 | Quotation | ||
| adjustable guide S/01 up to 500 mm | 10061 | Quotation | ||
| support roller | BG10076 | Quotation | ||
| support roller (metal) | BG10077 | Quotation | ||
