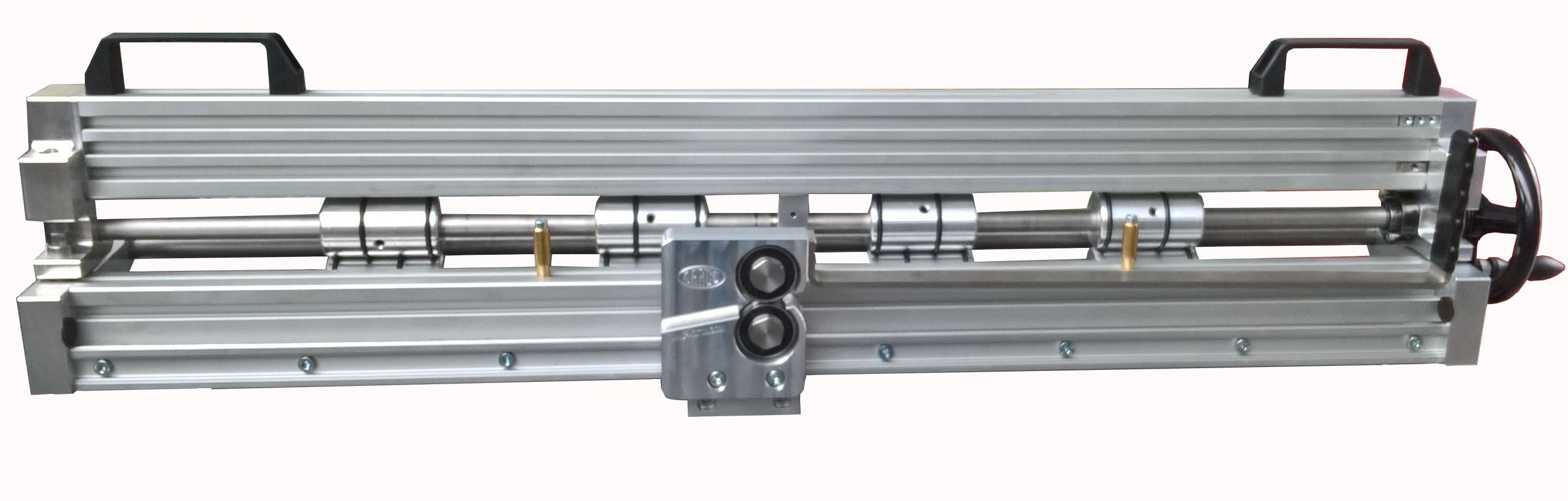

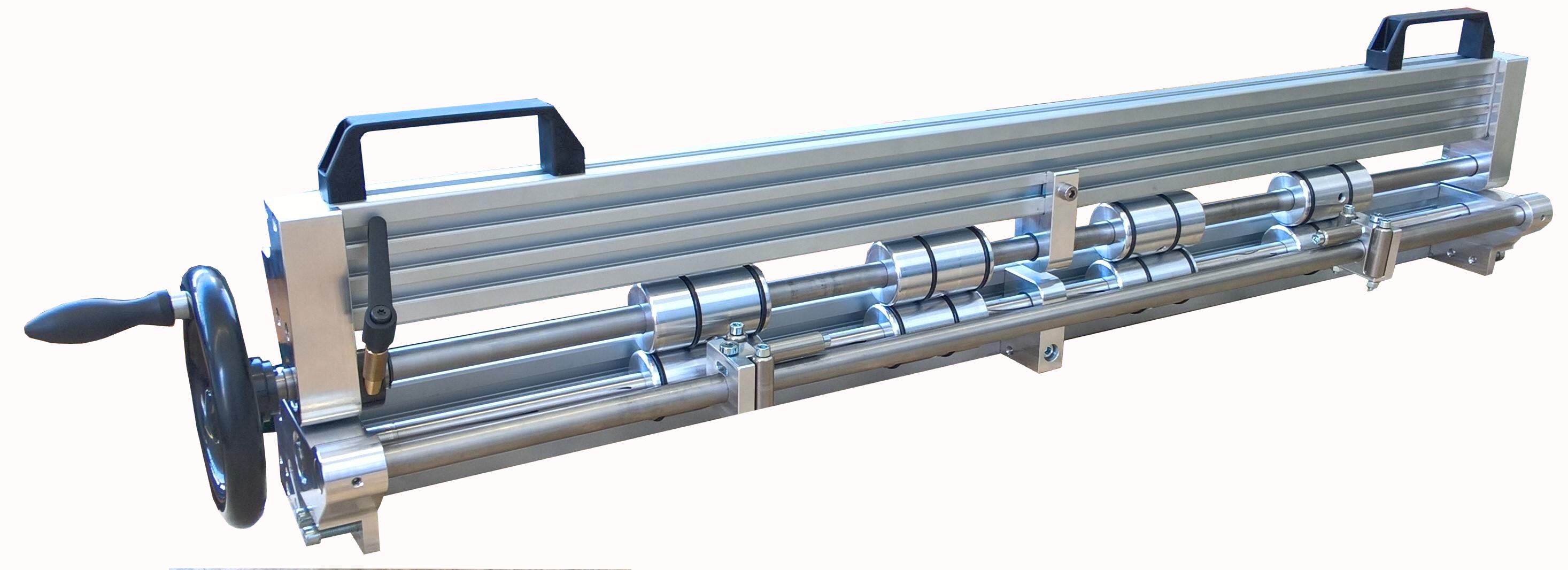

Decoiling & Cross Cut Attachment K1-125AQ

The Slitter Attachment K1-AQ can be fitted to any DRÄCO Decoiler or can be mounted on to a workbench.

The corresponding suspension is optional. Please state the purpose of use: table mounting or mounting on the coil trolley.

Optional also available with mechanical measuring device K1-LAQ.

width = 1250 mm
advised coil-width = 1000 mm

In quotation cart
Characteristics
  • rubber transportation rolls for a better grip
  • wheel for forward & reverse transportation of the coil-material with clamping device
  • collars adjustable for coil width
  • cutting rolls can be re-sharpened
  • ball bearings are maintenance free
Technical data
K1-125AQ K1-125AQ K1-100AQ K1-150AQ
Item. No. 91252-2 91251-291255-2
stainless steel; ; mm 0.5 0.5 0.5
pull capacity ±; ; kg 750 750 750
aluminium, copper, zinc; ; mm 1.0 1.0 1.0
weight; ; kg 36 32 39
Coil width, max.; ;mm 1000 800 1250
Optional accessories K1-125AQ

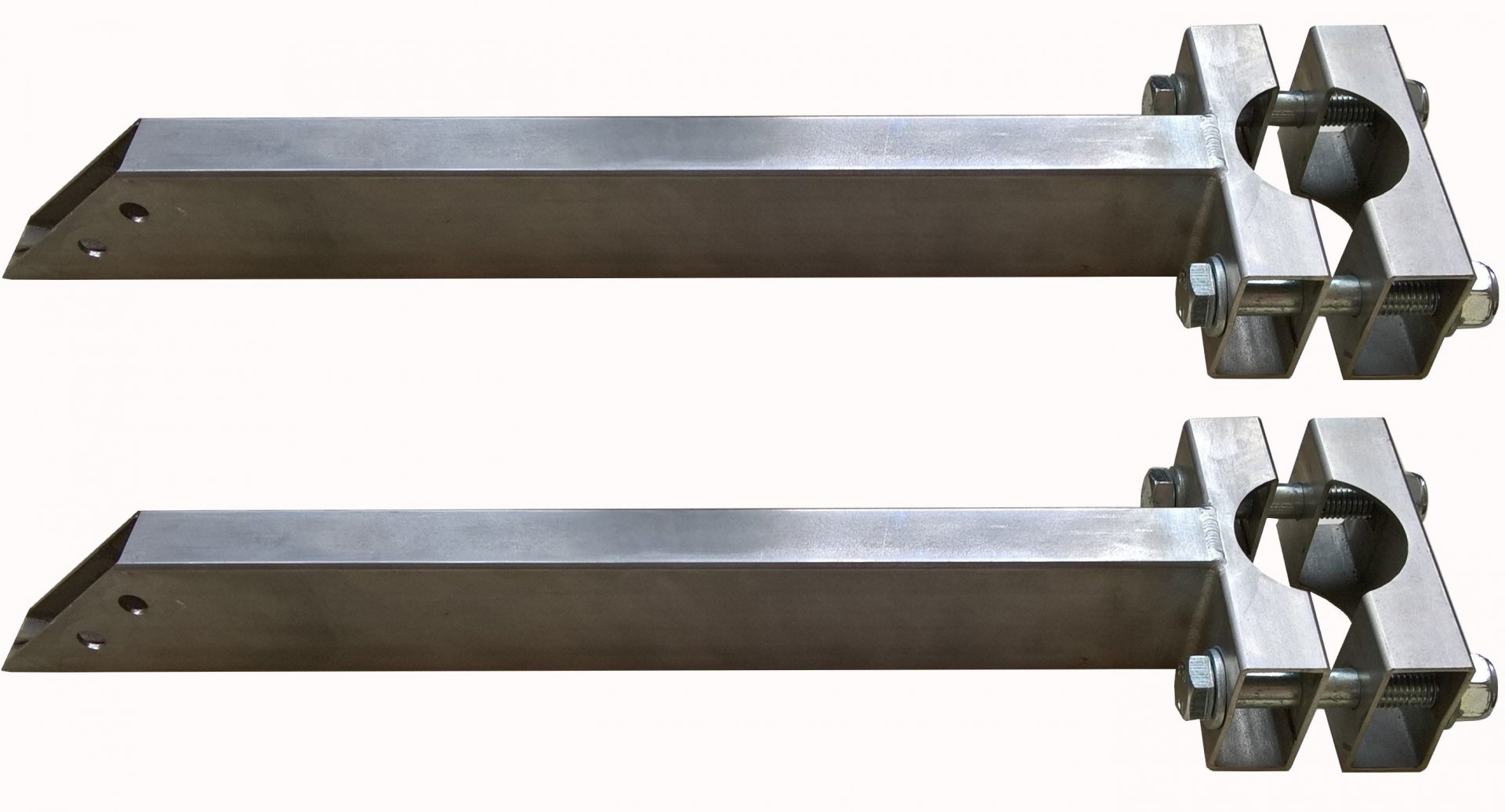

Stainless Steel support for K1-AQ (2 pcs) BGC300225 Quotation

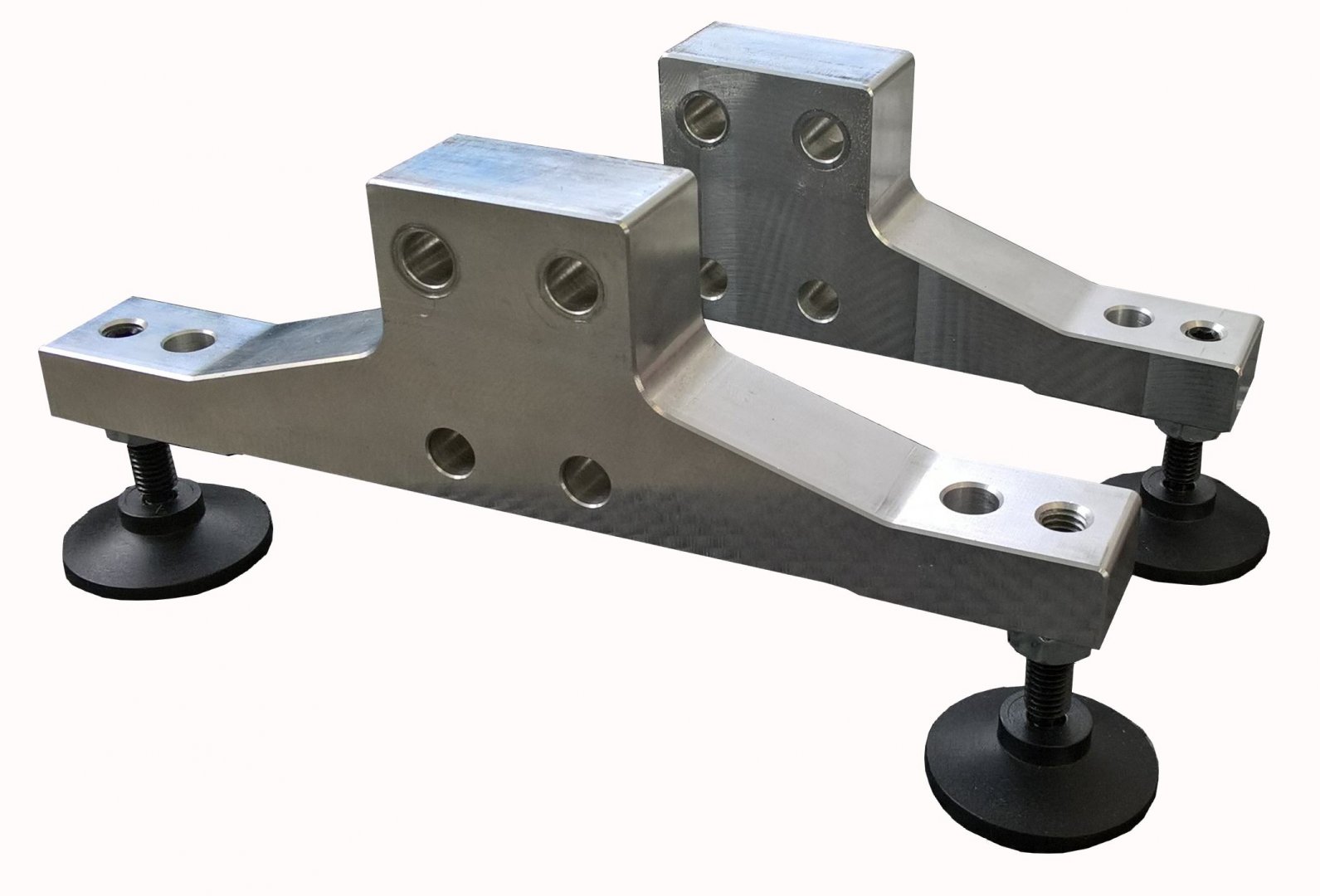

Supporting legs for K1-AQ (1 pair) BGC300218 Quotation
