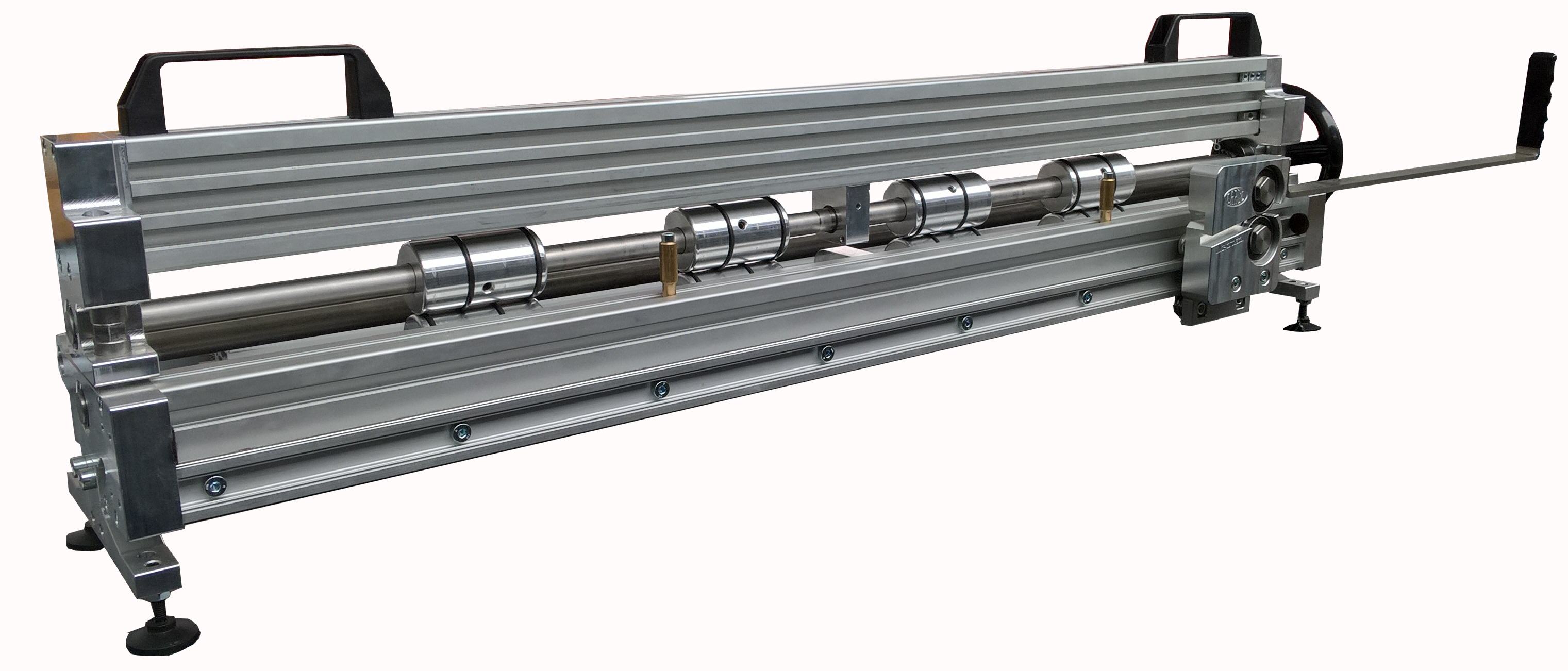

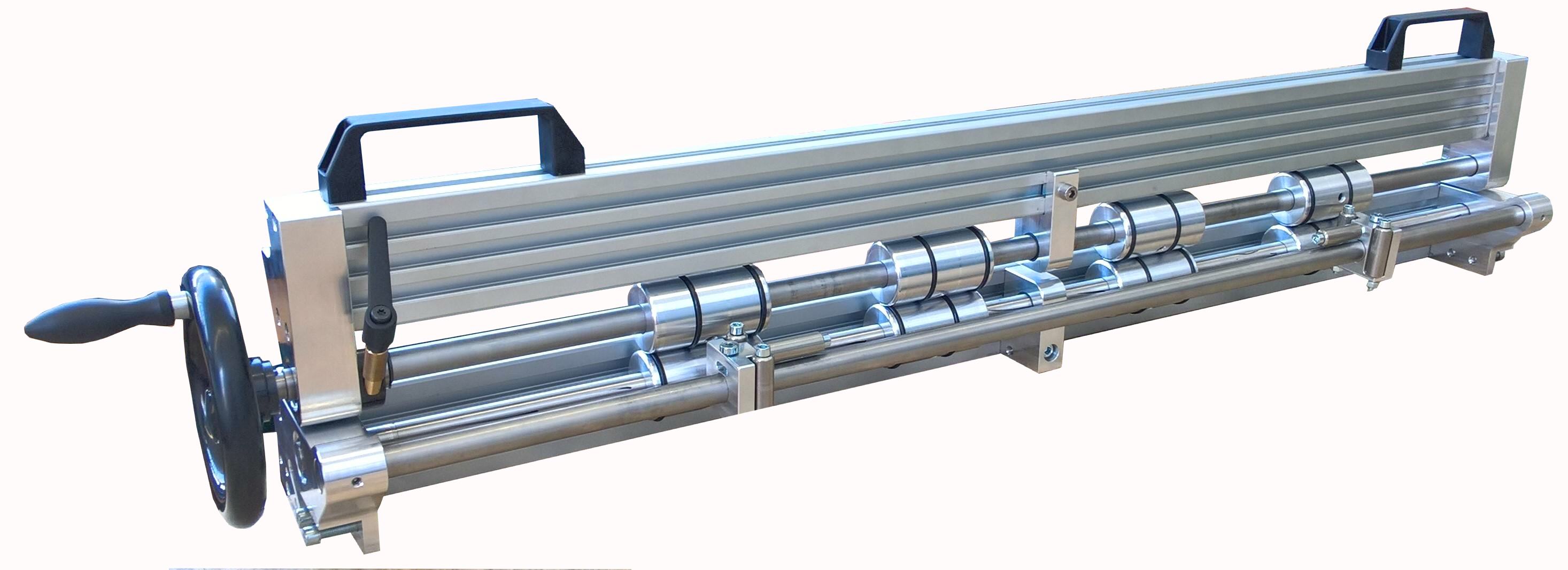

Decoiling & Cross Cut Attachment K1-100AQ
The Slitter Attachment K1-AQ can be fitted to any DRÄCO Decoiler or can be mounted on to a workbench.
The corresponding suspension is optional. Please state the purpose of use: table mounting or mounting on the coil trolley.
Optional also available with mechanical measuring device K1-LAQ.
width = 1000 mm
advised coil-width = 800 mm
- rubber transportation rolls for a better grip

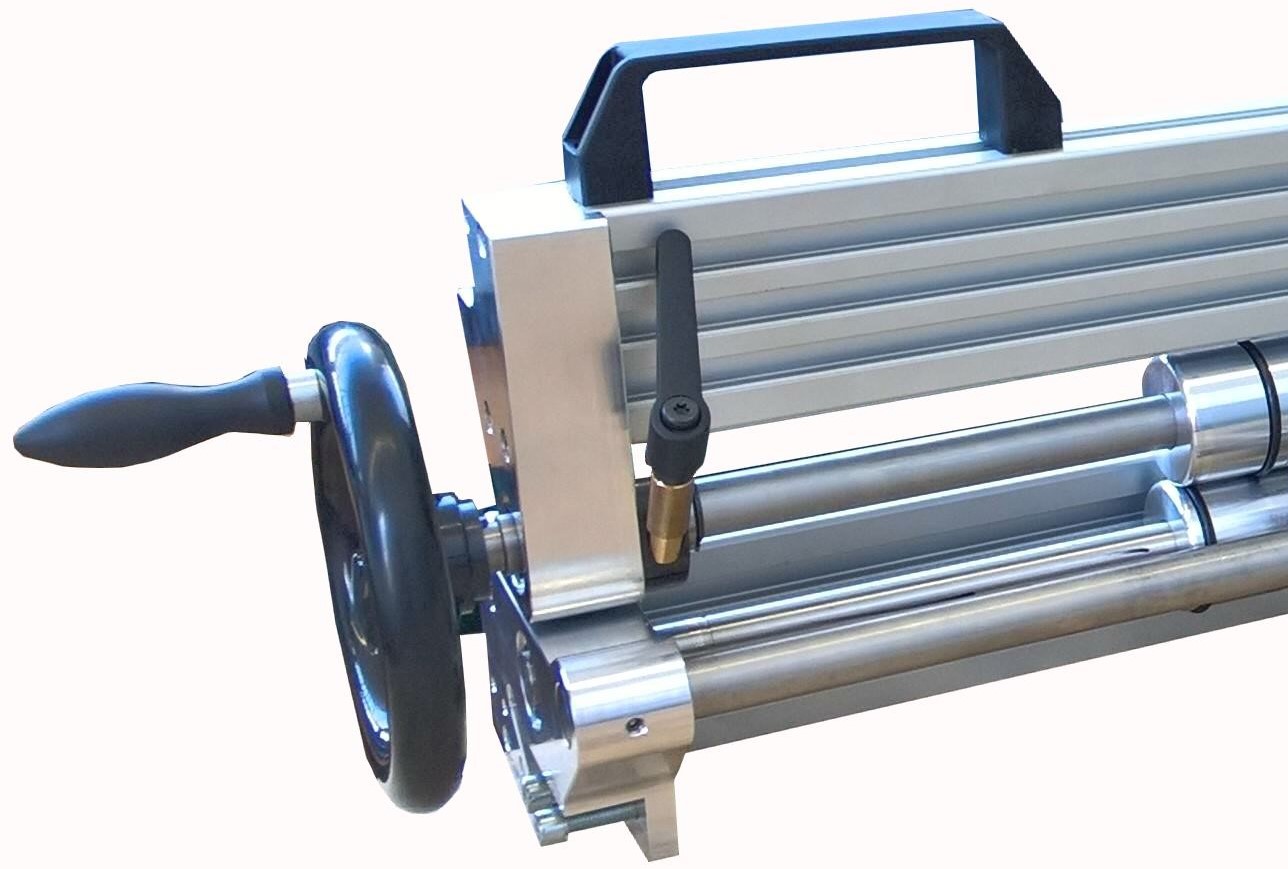

- wheel for forward & reverse transportation of the coil-material with clamping device

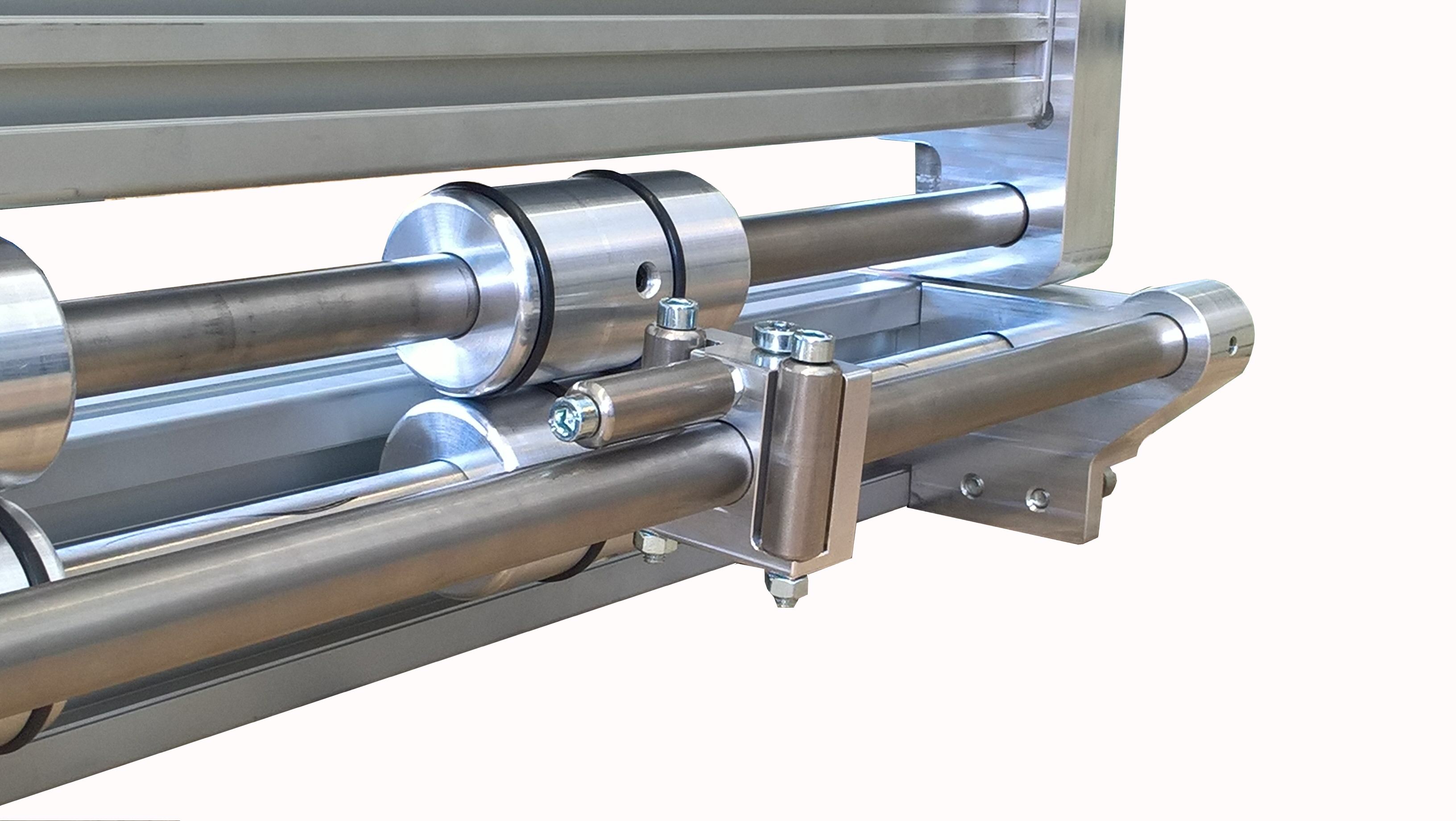

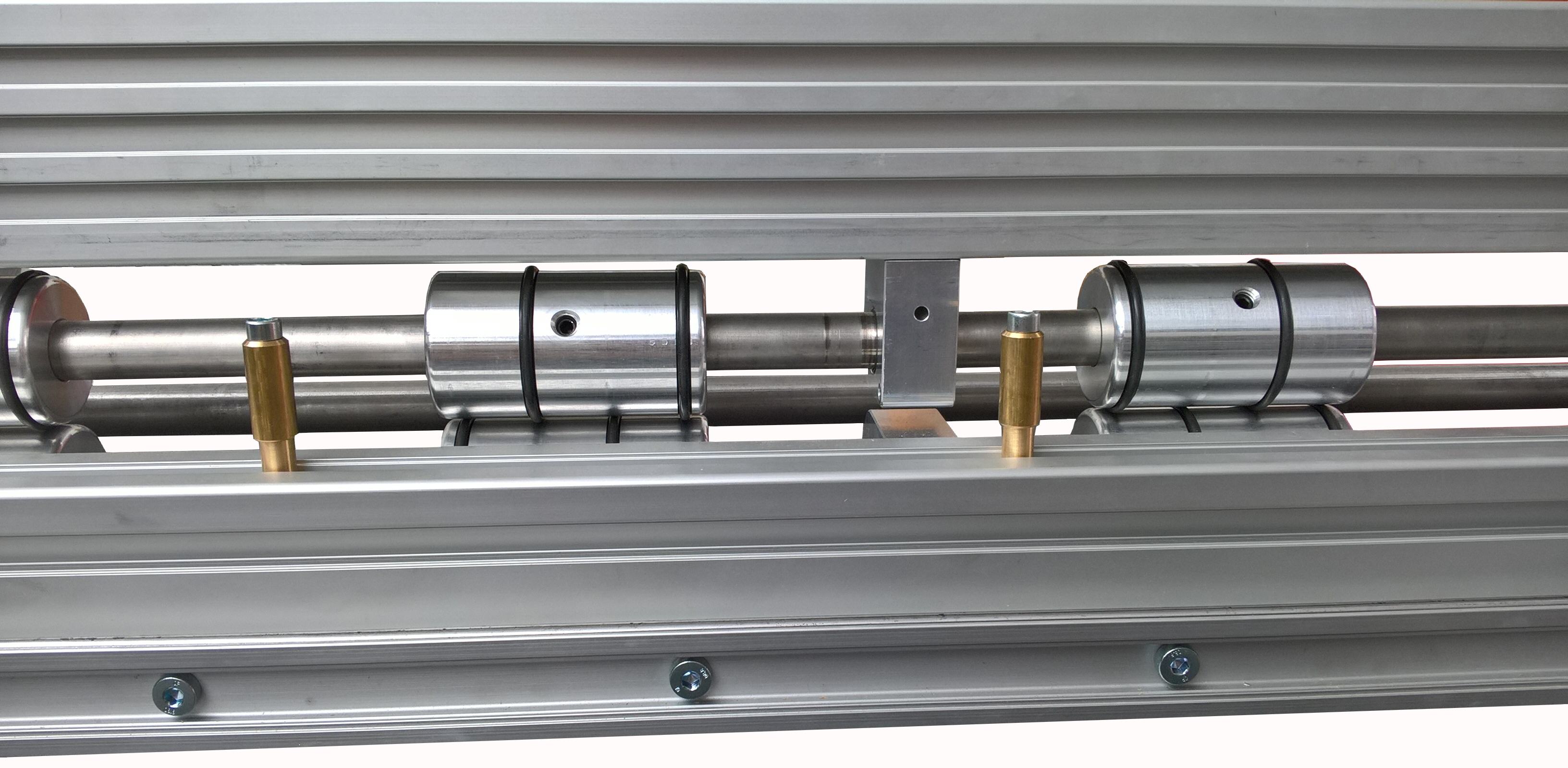

- collars adjustable for coil width

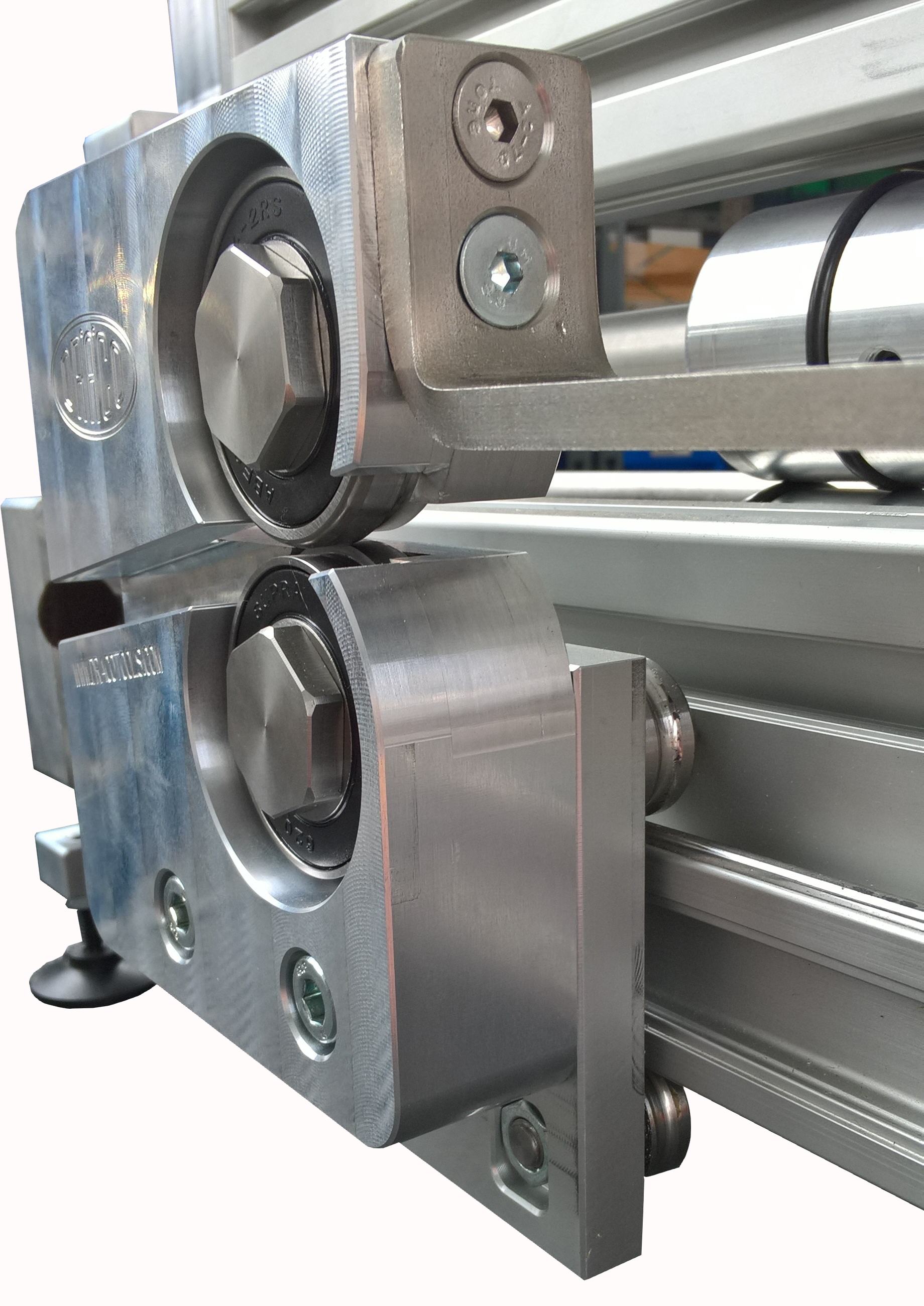

- cutting rolls can be re-sharpened
- ball bearings are maintenance free
|stainless steel; ; mm||0.5||0.5||0.5|
|pull capacity ±; ; kg||750||750||750|
|aluminium, copper, zinc; ; mm||1.0||1.0||1.0|
|weight; ; kg||32||36||39|
|Coil width, max.; ;mm||800||1000||1250|
