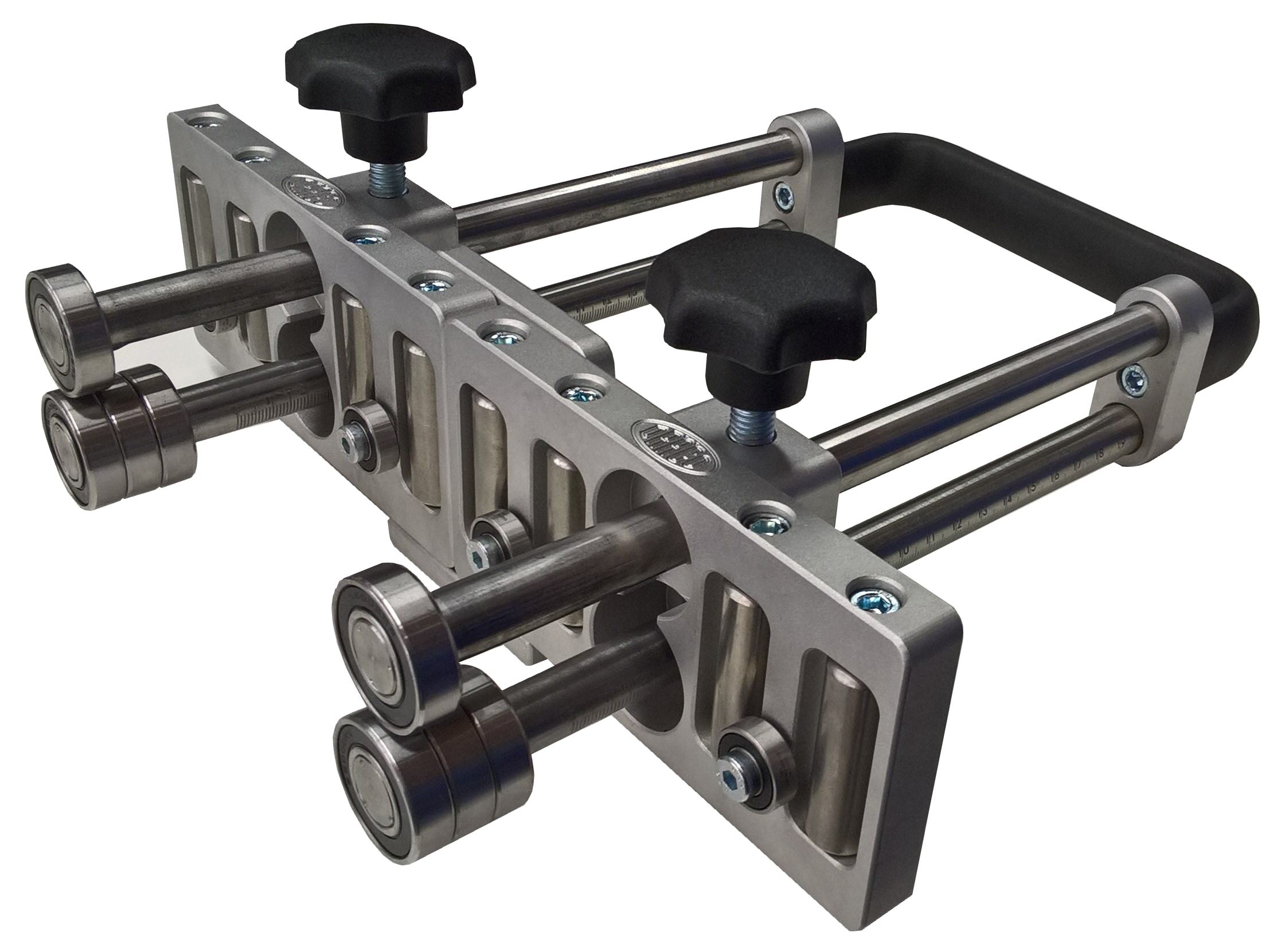

Rol-Bender Duo-EcO-Bender 3/200

bending from 0°-90°, bending height 5-200 mm

Universal mobile bending tool to bend and form all kind of materials straight, concave or convex.

This bender forms many profiles. Bending up and down, making under and over cloak (male and female), standing seam and many more. Bending height is continously adjustable (graduation in mm and inch). Inner and outer radii are possible, max. bending height depends on radius!

By using an adapter two EcO-Benders are connected to a Duo-EcO-Bender. A Duo-EcO-Bender is extremely comfortable when working on long and straight metal sheets, but if you need to work on shorter sheets you can easily unscrew the adapter and then you are able to work with two EcO-Benders.

Benefits of roll forming:

  • Flexible manufacturing process
  • Easy customization and freedom when it comes to giving shape to a profiled section even at the jobsite
  • Shorter travelling time
  • The required tools are small and affordable
  • Shorter production times imply prompt delivery and a faster completion of the job
  • Optimal leverage making work even more easy
  • economic price
  • etc.
In quotation cart
Characteristics

How is it done?
Very easy. Adjust to desired bending height by using integrated measuring device and lock it with the setscrew. Now place metal between the bending rolls. The single bearing is on top and shows the direction in which you will bend (the other 3 bearings carry the force). Now move Bender forth and back by pushing slightly up till requested angle is reached. You achieve a perfect result without damaging painted or coated metal.

Technical data
Duo-EcO-Bender 3/200 Duo-EcO-Bender 3/200 EcO-Bender3/200 with O-Grip EcO-Bender3/200 S1
Item. No. 91563 9154591545S1
steel; 400 N/mm²; mm 0.7 0.7 0.7
stainless steel; 600 N/mm²; mm 0.5 0.5 0.5
Zinc, Copper, Aluminium 1.0 1.0 0.8
Bends from - to 5 - 200 5 - 200 5 - 200
EAN 4250959699862 4250959609007 4250959614858
Additional equipment Duo-EcO-Bender 3/200
Adapter for EcO-Bender (version 2021) 91549-1 Quotation
