Type of machine
Bender sort
Bender version
25 mm
Roof & Wall

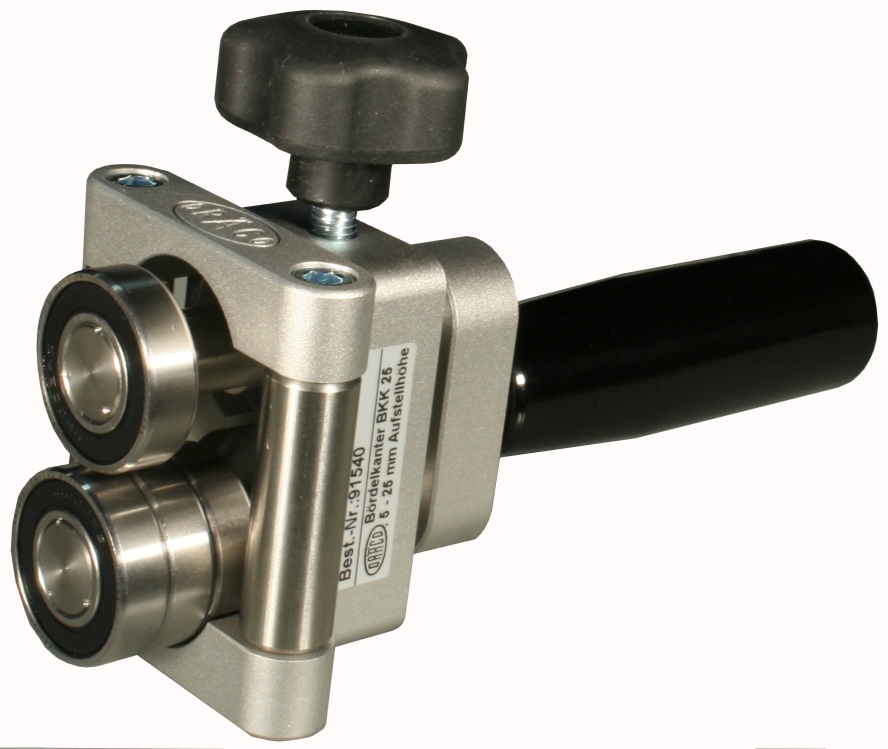

Rol-Bender Flange- & Curve Bender BKK 25

bending from 0°-90°, bending height 5-25 mm

When standard benders give up the handy little flange- and curve bender BKK 25 made by DRÄCO are needed. Bending from 0º till 90º, straight, concave and convex. Light and handy. Especially for producing tight radii (inner and outer radii!). Bending height is continously adjustable (scale in mm & inch). Smallest inside radius at min. bending height is 40 mm (1,57“). The BKK is the ideal supplement to the Dräco Eco-Bender 3.

How does it work?
Very easy. Just adjust to the requested height by using the integrated measuring device and lock it with the setscrew. Now put sheet metal between bending rolls with the single bearing on top. Move BKK forward and backwards by moving slightly to the top until desired angle is reached.
Dräco’s tip:  When going trough the sheet metal, please go all the way down (till the end) and also all the way back (till the beginning) to create the best result.

Benefits of roll forming:

  • Flexible manufacturing process
  • Easy customization and freedom when it comes to giving shape to a profiled section even at the jobsite
  • Shorter travelling time
  • The required tools are small and affordable
  • Shorter production times imply prompt delivery and a faster completion of the job
  • Optimal leverage making work even more easy
  • economic price
  • etc.
In quotation cart

BKK 25:

  • bends up from 0º to 90º
  • for bending curved sheet metal
  • especially for producing tight radii (inner and outer radii!)
  • bending height is continously adjustable (graduation in mm and inch)
  • max. bending height: 25 mm (0,98 inches)
  • min. bending height: 5 mm (0,2 inches)
  • smallest inside radius at min. bending height: 40 mm (1,57 inches)

→ For max. bending height 50 mm (2 inches) please see model BKK 50.

Technical data
Flange- & Curve Bender BKK 25 Flange- & Curve Bender BKK 25 EcO-Bender3/200 with O-Grip Disc Bender DB 41 (single) Flange- and Curve Bender BKK 50
Item. No. 91540 915459154191540S1
Zinc, Copper, Aluminium 1.0 1.0 1,0 1.0
Bends from - to 5 - 25 5 - 200 8 - 40 5 - 50
EAN 4250959608956 4250959609007 4250959608963 4250959614643
